LS Swap Oil Pan – Rear Sump | 4.250” Stroke Clearance | Complete Kit
This LS swap oil pan is built to fit the majority of popular swap platforms and delivers the clearance and capacity serious builds demand. With 4.250” stroke support, a baffled sump, and included pickup, it’s ready for high-performance, naturally aspirated, or mild stroker setups. Designed for rear-sump applications, this pan fits most muscle cars, classic trucks, and Fox body builds using aftermarket or factory K-members.
Key Specs:
-
Sump Style: Rear, Wet
-
Maximum Stroke (OE Rod): 4.250 in.
-
Oil Capacity: 5.5 quarts (6.0 quarts total with filter)
-
Pan Depth: 5.89 in.
-
Material: Cast Aluminum
-
Finish: Natural
-
Baffled: Yes
-
Pickup Included: Yes
-
Gaskets & Hardware: Included
-
Quantity: Sold individually
Note: Engine placement may need slight adjustment (up/down or fore/aft) depending on chassis and mount setup.

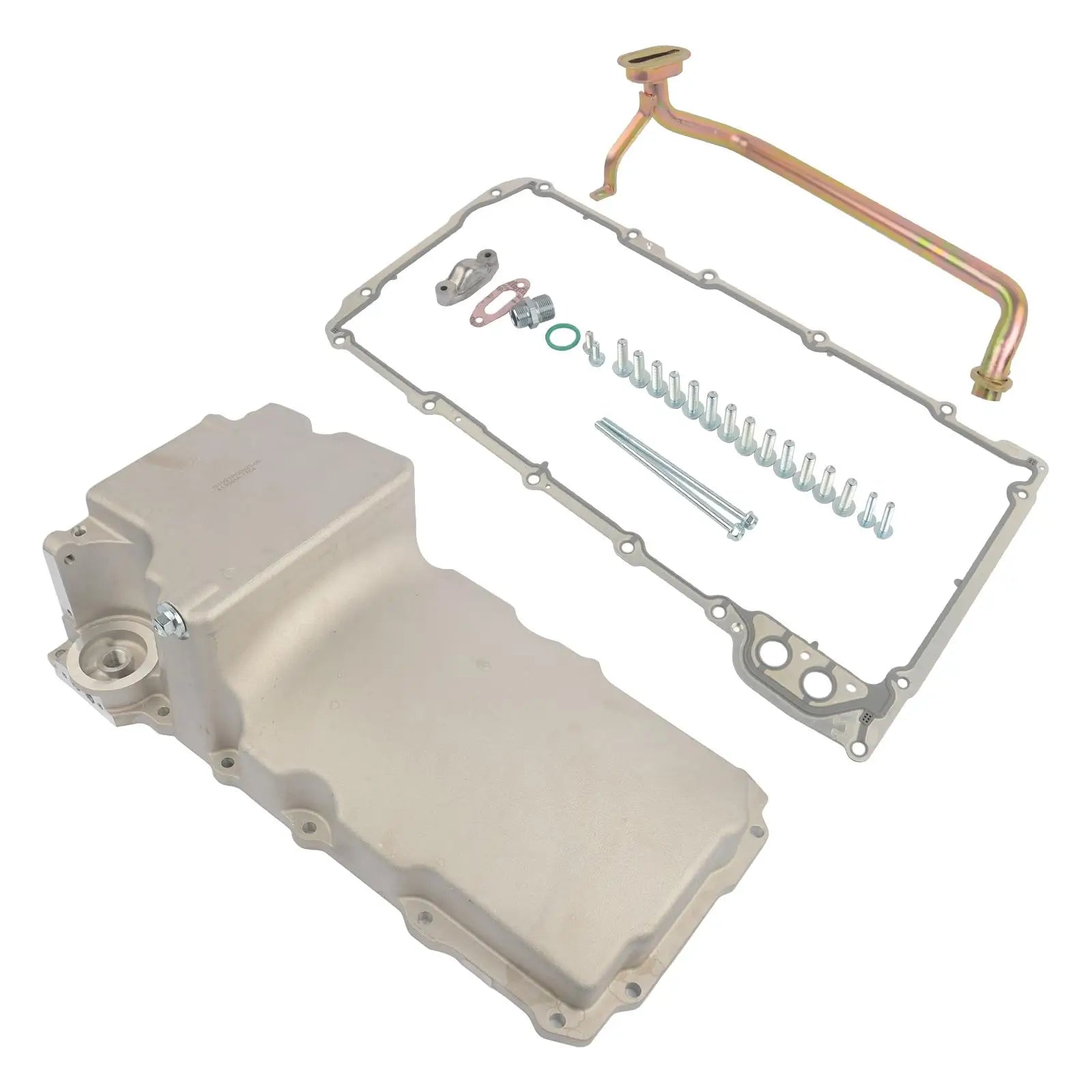

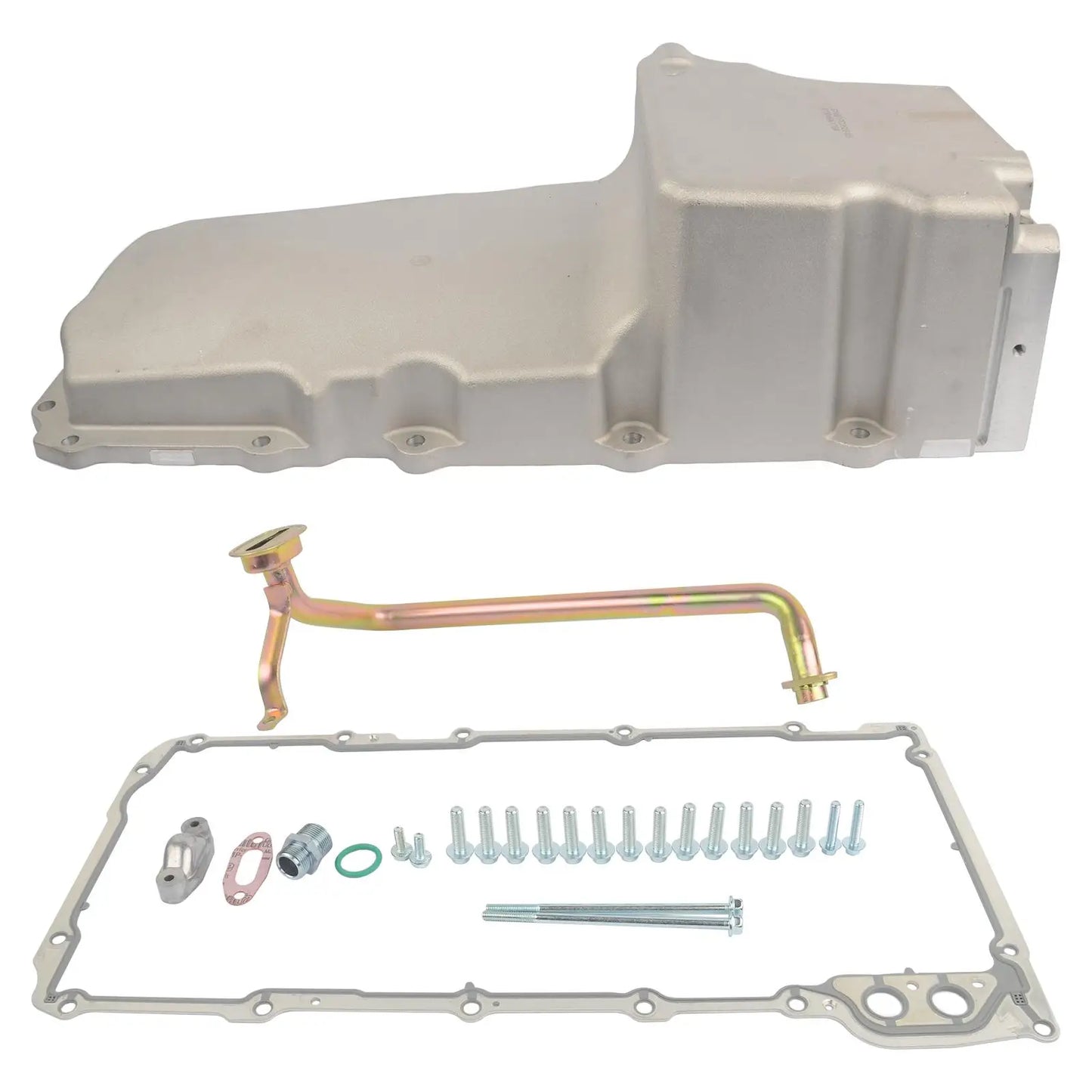

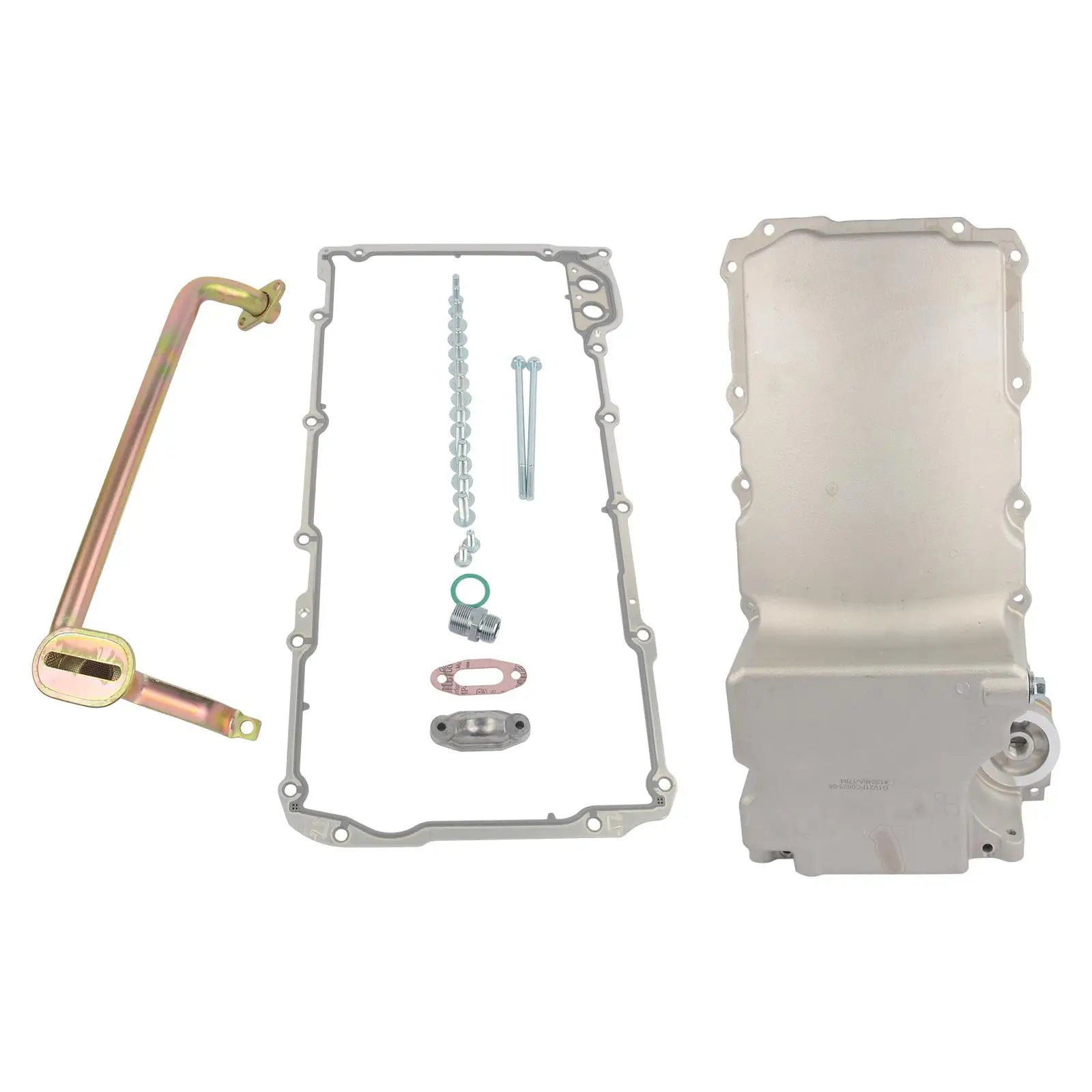

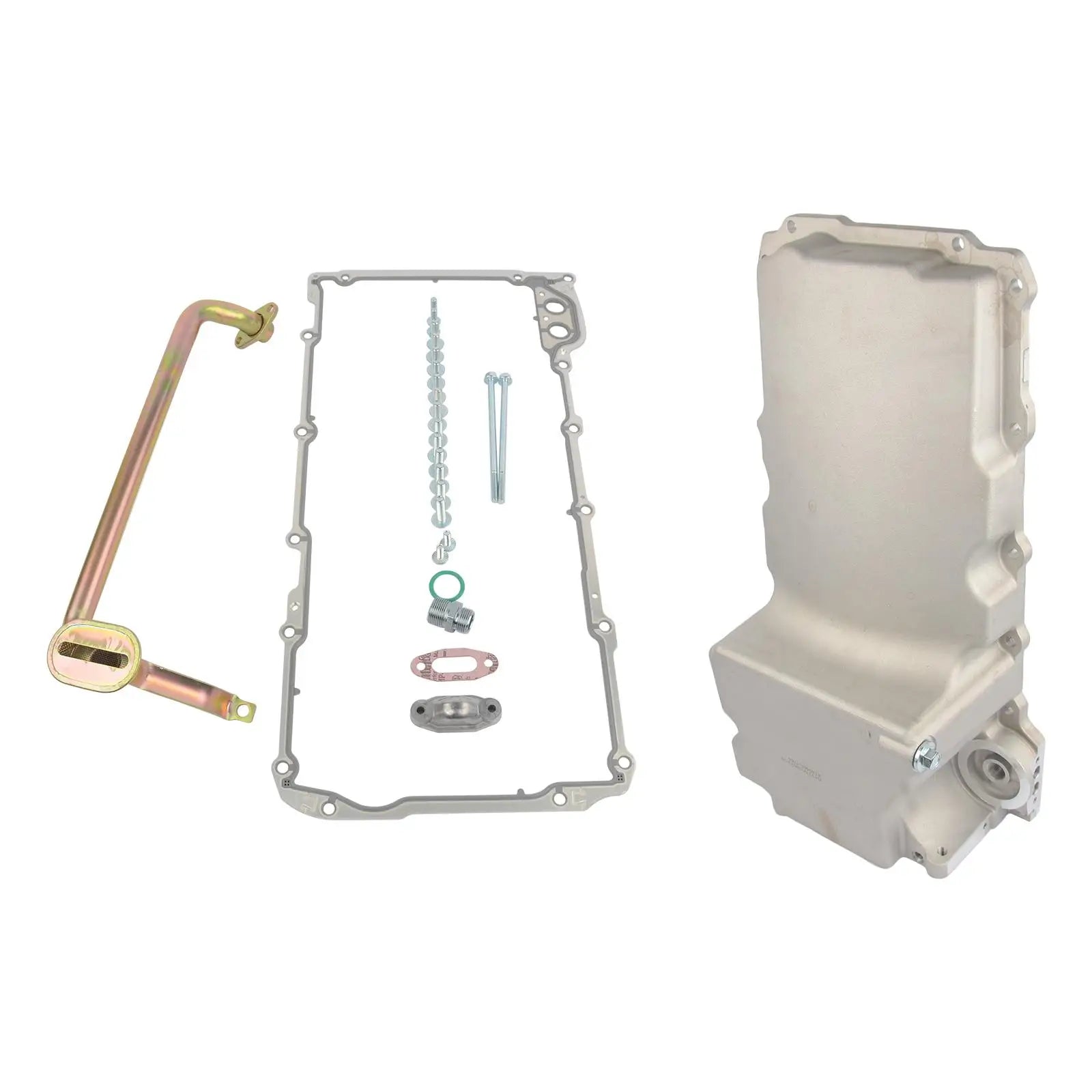

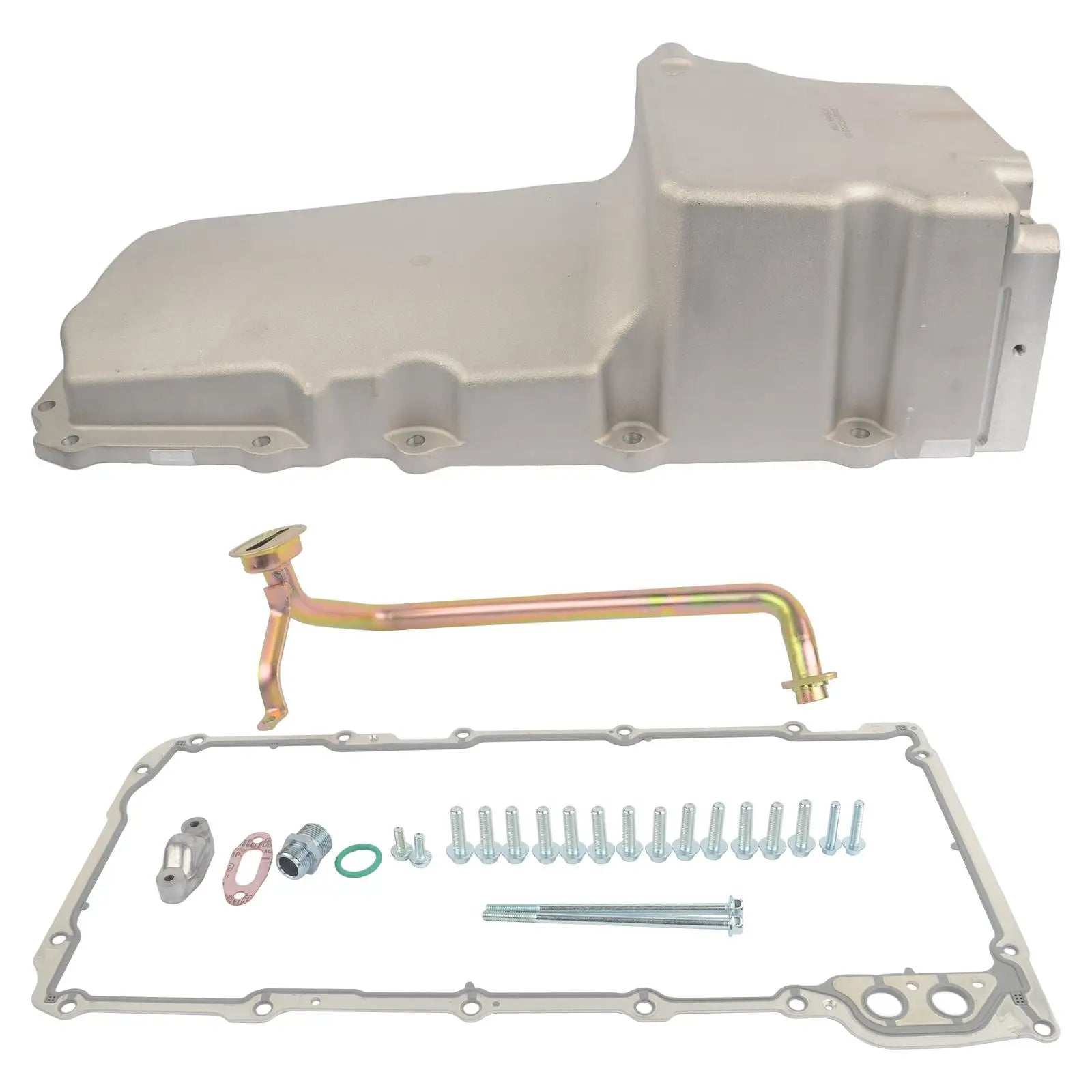

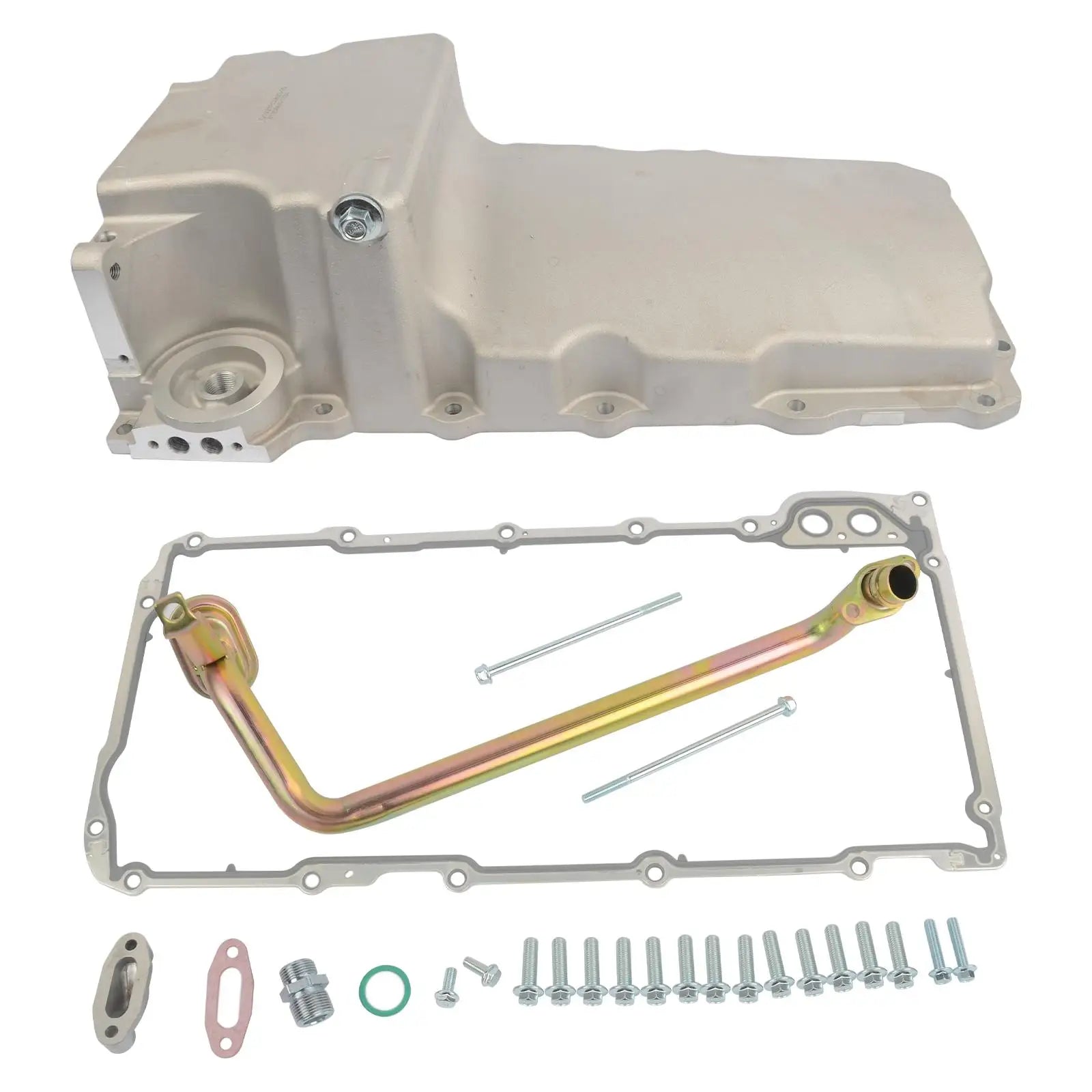

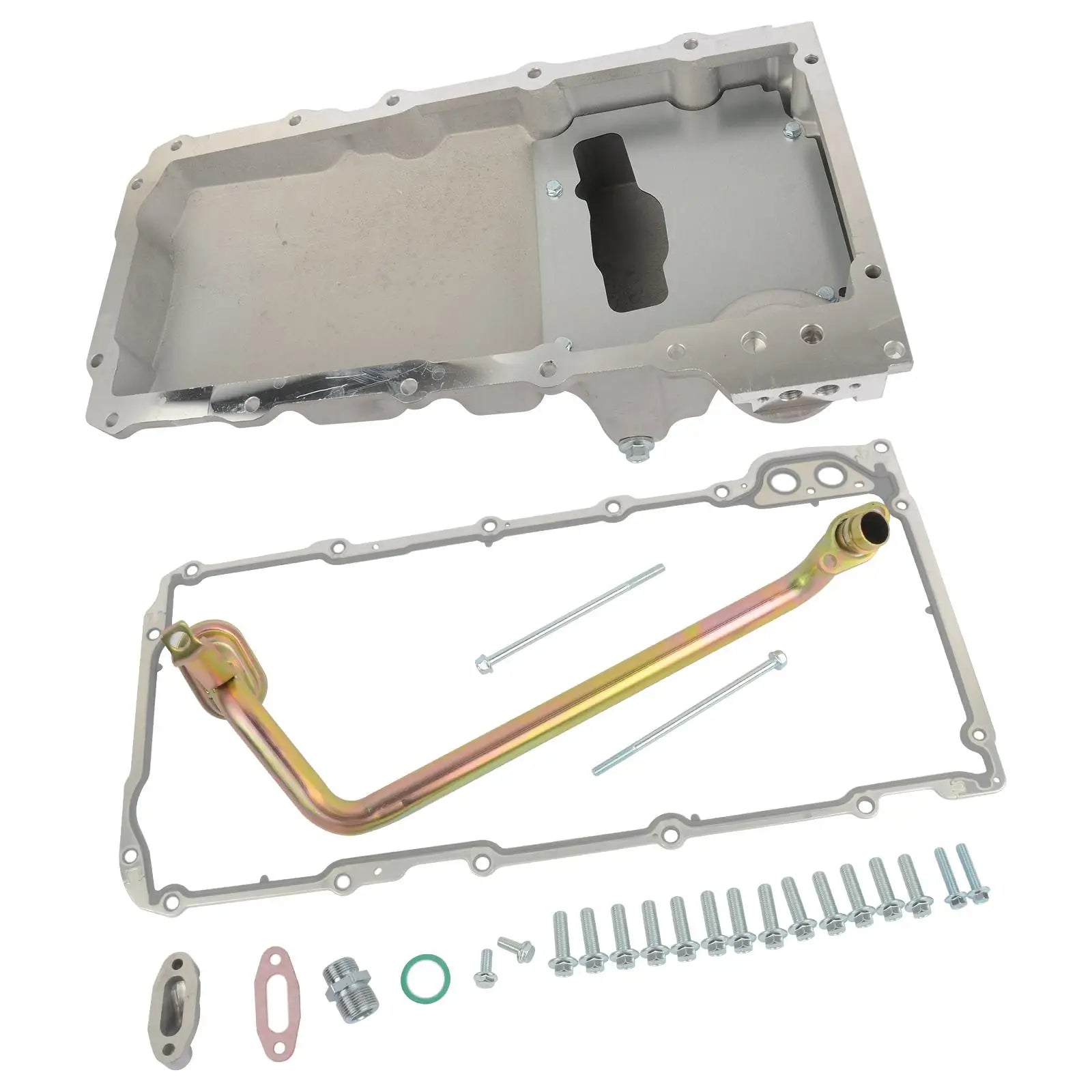

Kit Includes:
-
1x LS Swap Oil Pan
-
1x OE-Style Pickup Tube
-
1x Windage Bracket
-
1x Oil Passage Plate
-
Hardware Kit
